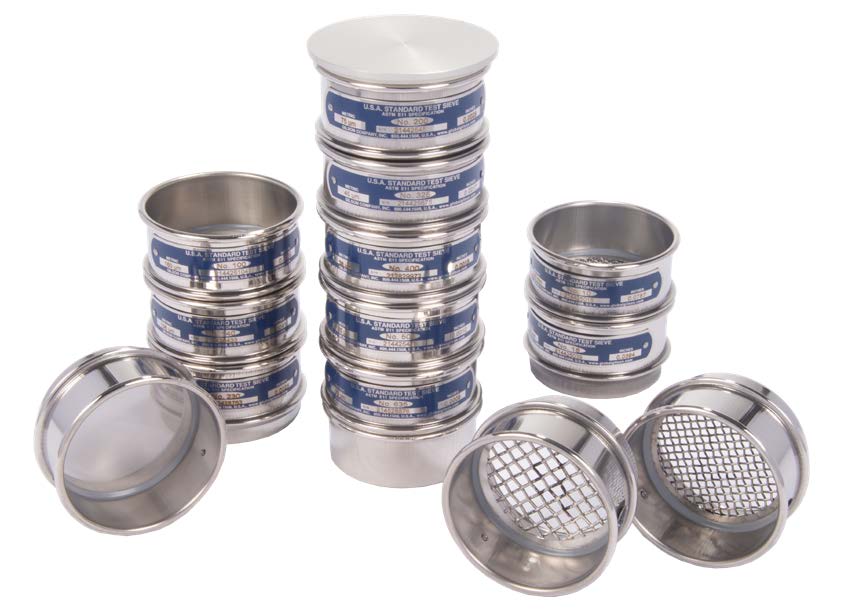

Gilson实验室3英寸（76mm）直径不锈钢筛网-试验筛

试验筛可通过检验进行验证或ASTM E11规定的校准等级或ISO 565和3310-1规范。

关键词:

产品分类:

物性测试仪器及设备

No votes yet

Tab group

参数

Gilson实验室3英寸不锈钢框架/黄铜框架-不锈钢网布筛网

Sieve Designation			不锈钢网布-不锈钢框架		不锈钢网布-黄铜框架
US Alternative	Std.	Metric Supplemental	全高	半高	全高	半高
3/8in — 5/16in — 0.265in 1/4in No.3-1/2in — No.4 —	9.5mm — 8.0mm — 6.7mm 6.3mm 5.6mm — 4.75mm —	— 9.0mm — 7.1mm — — — 5.0mm — 4.5mm	V3SF 3/8" V3SF 9M V3SF 5/16" V3SF 7.1M V3SF .265" V3SF 1/4" V3SF #3-1/2 V3SF 5M V3SF #4 V3SF 4.5M	— — — — — — V3SH #3-1/2 V3SH 5M V3SH #4 V3SH 4.5M	— — — — — — V3CF #3-1/2 V3CF 5M V3CF #4 V3CF 4.5M	— — — — — — V3CH #3-1/2 V3CH 5M V3CH #4 V3CH 4.5M
No.5 — No.6 — No.7 — No.8 — No.10 — No.12 — No.14 — No.16 —	4.0mm — 3.35mm — 2.8mm — 2.36mm — 2.0mm — 1.7mm — 1.4mm — 1.18mm —	— 3.55mm — 3.15mm — 2.5mm — 2.24mm — 1.80mm — 1.60mm — 1.25mm — 1.12mm	V3SF #5 V3SF 3.55M V3SF #6 V3SF 3.15M V3SF #7 V3SF 2.5M V3SF #8 V3SF 2.24M V3SF #10 V3SF 1.8M V3SF #12 V3SF 1.6M V3SF #14 V3SF 1.25M V3SF #16 V3SF 1.12M	V3SH #5 V3SH 3.55M V3SH #6 V3SH 3.15M V3SH #7 V3SH 2.5M V3SH #8 V3SH 2.24M V3SH #10 V3SH 1.8M V3SH #12 V3SH 1.6M V3SH #14 V3SH 1.25M V3SH #16 V3SH 1.12M	V3CF #5 V3CF 3.55M V3CF #6 V3CF 3.15M V3CF #7 V3CF 2.5M V3CF #8 V3CF 2.24M V3CF #10 V3CF 1.8M V3CF #12 V3CF 1.6M V3CF #14 V3CF 1.25M V3CF #16 V3CF 1.12M	V3CH #5 V3CH 3.55M V3CH #6 V3CH 3.15M V3CH #7 V3CH 2.5M V3CH #8 V3CH 2.24M V3CH #10 V3CH 1.8M V3CH #12 V3CH 1.6M V3CH #14 V3CH 1.25M V3CH #16 V3CH 1.12M
No.18 — No.20 — No.25 — No.30 — No.35 — No.40 — No.45 — No.50 —	1.0mm — 850μm — 710μm — 600μm — 500μm — 425μm — 355μm — 300μm —	— 900μm — 800μm — 630μm — 560μm — 450μm — 400μm — 315μm — 280μm	V3SF #18 V3SF 900U V3SF #20 V3SF 800U V3SF #25 V3SF 630U V3SF #30 V3SF 560U V3SF #35 V3SF 450U V3SF #40 V3SF 450U V3SF #45 V3SF 315U V3SF #50 V3SF 280U	V3SH #18 V3SH 900U V3SH #20 V3SH 800U V3SH #25 V3SH 630U V3SH #30 V3SH 560U V3SH #35 V3SH 450U V3SH #40 V3SH 450U V3SH #45 V3SH 315U V3SH #50 V3SH 280U	V3CF #18 V3CF 900U V3CF #20 V3CF 800U V3CF #25 V3CF 630U V3CF #30 V3CF 560U V3CF #35 V3CF 450U V3CF #40 V3CF 450U V3CF #45 V3CF 315U V3CF #50 V3CF 280U	V3CH #18 V3CH 900U V3CH #20 V3CH 800U V3CH #25 V3CH 630U V3CH #30 V3CH 560U V3CH #35 V3CH 450U V3CH #40 V3CH 450U V3CH #45 V3CH 315U V3CH #50 V3CH 280U
No.60 — No.70 — No.80 — No.100 — No.120 — No.140 — No.170 — No.200 —	250μm — 212μm — 180μm — 150μm — 125μm — 106μm — 90μm — 75μm —	— 224μm — 200μm — 160μm — 140μm — 112μm — 100μm — 80μm — 71μm	V3SF #60 V3SF 224U V3SF #70 V3SF 200U V3SF #80 V3SF 160U V3SF #100 V3SF 140U V3SF #120 V3SF 112U V3SF #140 V3SF 100U V3SF #170 V3SF 80U V3SF #200 V3SF 71U	V3SH #60 V3SH 224U V3SH #70 V3SH 200U V3SH #80 V3SH 160U V3SH #100 V3SF 140U V3SH #120 V3SH 112U V3SH #140 V3SH 100U V3SH #170 V3SH 80U V3SH #200 V3SH 71U	V3CF #60 V3CF 224U V3CF #70 V3CF 200U V3CF #80 V3CF 160U V3CF #100 V3CF 140U V3CF #120 V3CF 112U V3CF #140 V3CF 100U V3CF #170 V3CF 80U V3CF #200 V3CF 71U	V3CH #60 V3CH 224U V3CH #70 V3CH 200U V3CH #80 V3CH 160U V3CH #100 V3CH 140U V3CH #120 V3CH 112U V3CH #140 V3CH 100U V3CH #170 V3CH 80U V3CH #200 V3CH 71U

No.230 — No.270 — No.325 — No.400 — No.450 No.500 No.635	63μm — 53μm — 45μm — 38μm — 32μm 25μm 20μm	— 56μm — 50μm — 40μm — 36μm — — —	V3SF #230 V3SF 56U V3SF #270 V3SF 50U V3SF #325 V3SF 40U V3SF #400 V3SF 36U V3SF #450 V3SF #500 V3SF #635	V3SH #230 V3SH 56U V3SH #270 V3SH 50U V3SH #325 V3SH 40U V3SH #400 V3SH 36U V3SH #450 V3SH #500 V3SH #635	V3CF #230 V3CF 56U V3CF #270 V3CF 50U V3CF #325 V3CF 40U V3CF #400 V3CF 36U V3CF #450 V3CF #500 V3CF #635	V3CH #230 V3CH 56U V3CH #270 V3CH 50U V3CH #325 V3CH 40U V3CH #400 V3CH 36U V3CH #450 V3CH #500 V3CH #635
Regular Pan Extended Rim Pan			V3SFXPN V3SFXPE	V3SHXPN V3SHXPE	V3BFXPN V3BFXPE	V3BHXPN V3BHXPE
Regular Cover Cover with Ring			V3SFXCV V3SFXCVR		V3BFXCV V3BFXCVR

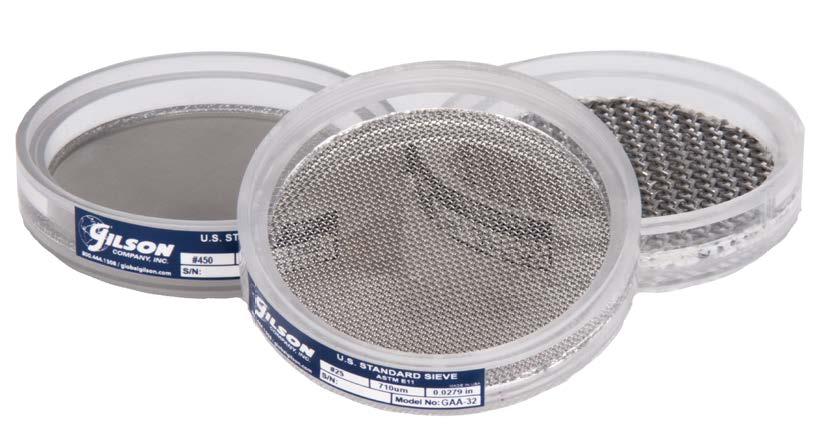

Gilson实验室3英寸亚克力框架-不锈钢网布

3in Diameter Acrylic Frame ASTM E11 Test Sieves

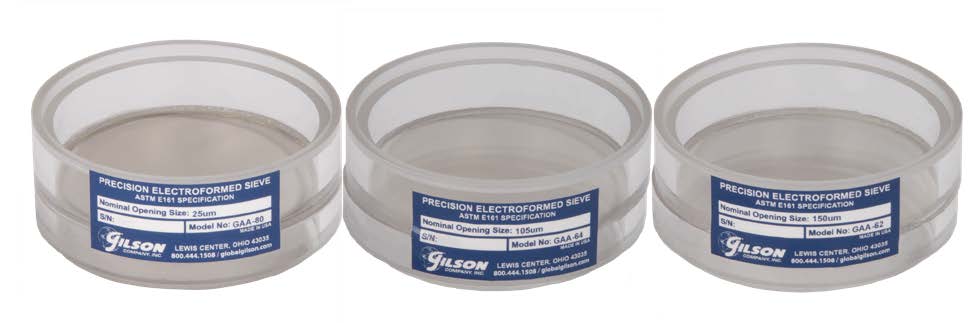

Sieve Designation		Stainless Steel Mesh	ASTM E161 Precision Electroformed
Alt.	Std.
No. 3-1/2	5.60mm	GAA-20	—
No.4	4.75mm	GAA-21	—
No.5	4.00mm	GAA-22	—
No.6	3.35mm	GAA-23	—
No.7	2.80mm	GAA-24	—
No.8	2.36mm	GAA-25	—
No.10	2.00mm	GAA-26	—
No.12	1.70mm	GAA-27	—
No.14	1.40mm	GAA-28	—
No.16	1.18mm	GAA-29	—
No.18	1.00mm	GAA-30	—
No.20	850μm	GAA-31	—
No.25	710μm	GAA-32	—
No.30	600μm	GAA-33	—
No.35	500μm	GAA-34	—
No.40	425μm	GAA-35	—
No.45	355μm	GAA-36	—
No.50	300μm	GAA-37	—
No.60	250μm	GAA-38	—
No.70	212μm	GAA-39	—
No.80	180μm	GAA-40	—
No.100	150μm	GAA-41	GAA-62
No.120	125μm	GAA-42	GAA-63
No.140	106μm	GAA-43	GAA-63A
—	105μm	—	GAA-64
—	100μm	—	GAA-65
—	95μm	—	GAA-66
No.170	90μm	GAA-44	GAA-67
—	85μm	—	GAA-68
—	80μm	—	GAA-69
No.200	75μm	GAA-45	GAA-70
—	70μm	—	GAA-71
—	65μm	—	GAA-72
No.230	63μm	GAA-46	GAA-72A
—	60μm	—	GAA-73
—	55μm	—	GAA-74
No.270	53μm	GAA-47	GAA-74A
—	50μm	—	GAA-75
No.325	45μm	GAA-48	GAA-76
—	40μm	—	GAA-77
No.400	38μm	GAA-49	GAA-77A
—	35μm	—	GAA-78
No.450	32μm	GAA-50	GAA-78A
—	30μm	—	GAA-79
No.500	25μm	GAA-51	GAA-80
No.635	20μm	GAA-52	GAA-81
—	15μm	—	GAA-82
—	10μm	—	GAA-83
—	5μm	—	GAA-84
